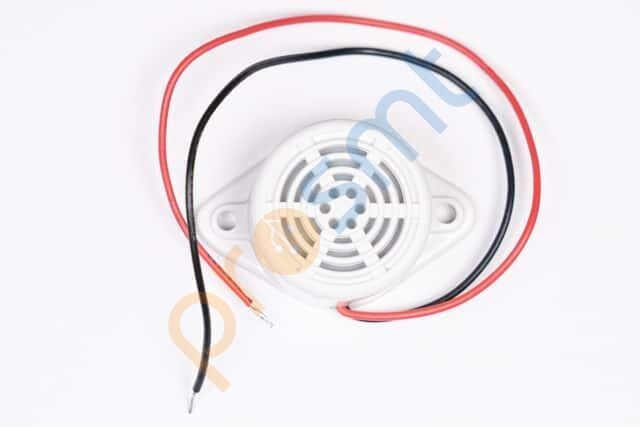

BR2618L-12 BUZZER MAGNETIC 12V 25.8MM PNL - ALARM, BUZZER, SIREN
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri
BR2618L-12 BUZZER MAGNETIC 12V 25.8MM PNL
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | BR2618L-12 |
| Mfr | International Components Corp. |
| Description | BUZZER MAGNETIC 12V 25.8MM PNL |
| Series | BR2618L |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 7 ~ 16V |
| Frequency | 400Hz |
| Technology | Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 95dB @ 12V, 10cm |
| Current - Supply | 23mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.016" Dia (25.80mm) |
| Height - Seated (Max) | 0.693" (17.60mm) |
