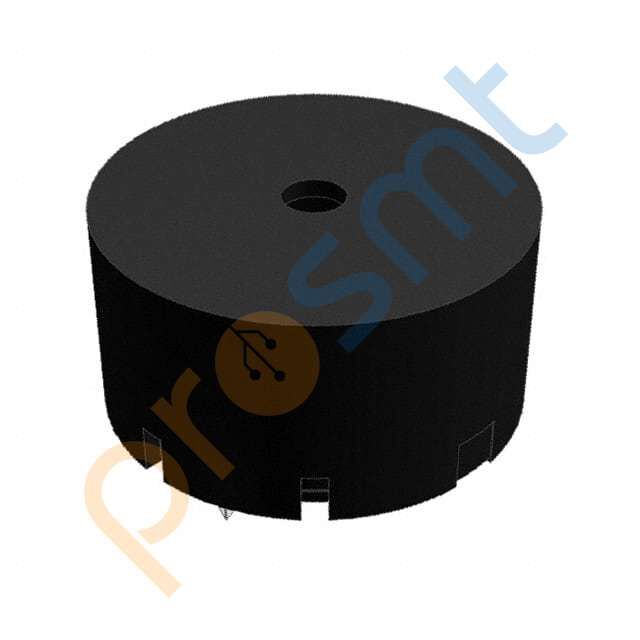

AT-1720-TT-R AUDIO PIEZO TRANSDUCER 3-25V TH - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri
AT-1720-TT-R AUDIO PIEZO TRANSDUCER 3-25V TH
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | AT-1720-TT-R |
| Mfr | PUI Audio, Inc. |
| Description | AUDIO PIEZO TRANSDUCER 3-25V TH |
| Series | AT |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 3 ~ 25V |
| Frequency | 2kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 70dB @ 3V, 10cm |
| Current - Supply | 3mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 105°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Through Hole |
| Termination | PC Pins |
| Size / Dimension | 0.669" Dia (17.00mm) |
| Height - Seated (Max) | 0.358" (9.10mm) |
