AST1440MATRQ AUDIO PIEZO TRANSDUCER 1-20V SMD - ALARM, BUZZER, SIREN
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

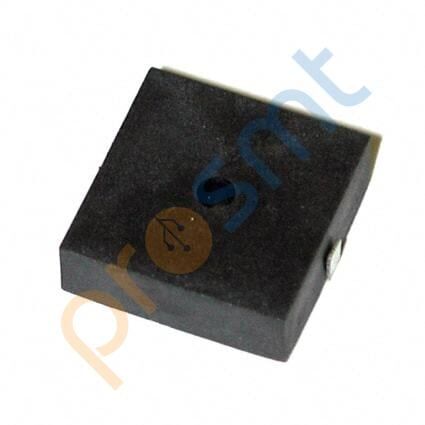

AST1440MATRQ AUDIO PIEZO TRANSDUCER 1-20V SMD
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | AST1440MATRQ |
| Mfr | Mallory Sonalert Products Inc. |
| Description | AUDIO PIEZO TRANSDUCER 1-20V SMD |
| Series | AST |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 5 V |
| Voltage Range | 1 ~ 20V |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 75dB @ 5V, 10cm |
| Current - Supply | 2mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.555" L x 0.555" W (14.10mm x 14.10mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
