AST0940MCTRQ SMT TRANSDUCER,1-25VAC,78DB,4000 - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

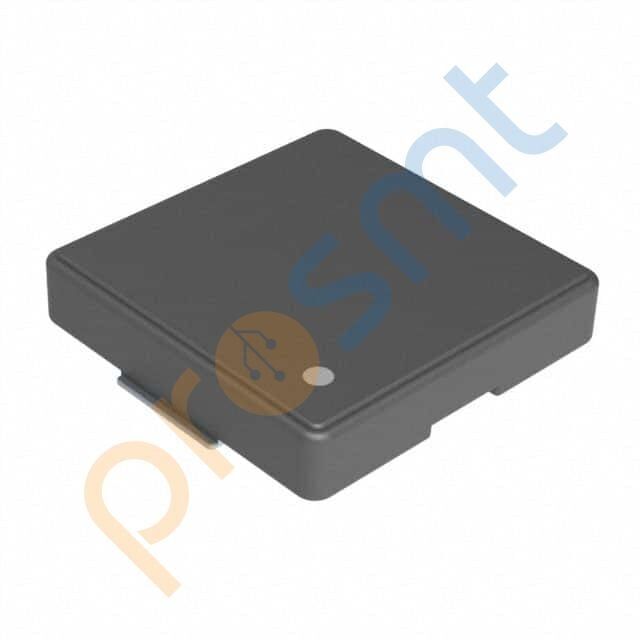

AST0940MCTRQ SMT TRANSDUCER,1-25VAC,78DB,4000
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | AST0940MCTRQ |
| Mfr | Mallory Sonalert Products Inc. |
| Description | SMT TRANSDUCER,1-25VAC,78DB,4000 |
| Series | AST |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 1 ~ 25V |
| Frequency | 4kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 78dB @ 12V, 10cm |
| Current - Supply | 5mA |
| Port Location | Side |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.354" L x 0.354" W (9.00mm x 9.00mm) |
| Height - Seated (Max) | 0.075" (1.90mm) |
