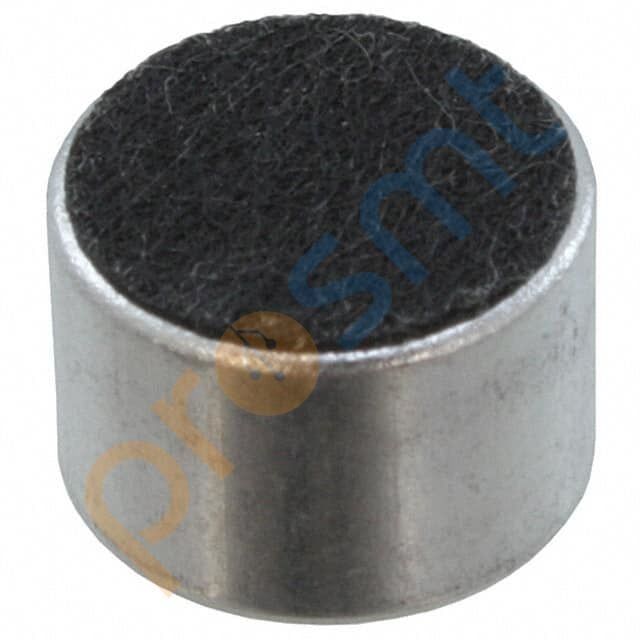

AOM-6746L-R MICROPHONE COND ANALOG OMNI - MIKROFON | MIC
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri
AOM-6746L-R MICROPHONE COND ANALOG OMNI
CUI Devices mikrofon CMC-6050-40L100. 100 Hz ~ 20.0 kHz, Circular, Electret Condenser, -40dB ±3dB @ 94dB SPL, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | AOM-6746L-R |
| Mfr | PUI Audio, Inc. |
| Description | MICROPHONE COND ANALOG OMNI |
| Series | AOM |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 30 Hz ~ 15.0 kHz |
| Sensitivity | -46dB ±3dB |
| S/N Ratio | 60dB |
| Impedance | 2.2 kOhms |
| Voltage - Rated | 1.5 V |
| Voltage Range | 1.5 V ~ 10.0 V |
| Current - Supply | 500 µA |
| Port Location | Top |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.382" Dia (9.70mm) |
| Height (Max) | 0.272" (6.90mm) |
| Shape | Circular |
Bu ürüne ilk yorumu siz yapın!
