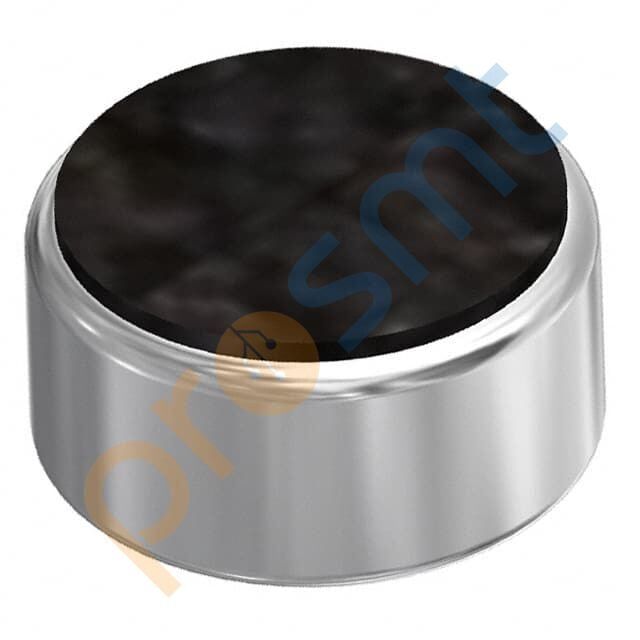

AOM-6545L-R MICROPHONE COND ANALOG OMNI
Soberton Inc. mikrofon EM-6027P. 100 Hz ~ 15.0 kHz, Circular, Electret Condenser, -43dB ±5dB @ 94dB SPL, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | AOM-6545L-R |
| Mfr | PUI Audio, Inc. |
| Description | MICROPHONE COND ANALOG OMNI |
| Series | AOM |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 30 Hz ~ 15.0 kHz |
| Sensitivity | -45dB ±2dB |
| S/N Ratio | 60dB |
| Impedance | 1 kOhms |
| Voltage - Rated | 4.5 V |
| Voltage Range | 4.5 V ~ 10.0 V |
| Current - Supply | 500 µA |
| Port Location | Top |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.370" Dia (9.40mm) |
| Height (Max) | 0.264" (6.70mm) |
| Shape | Circular |
