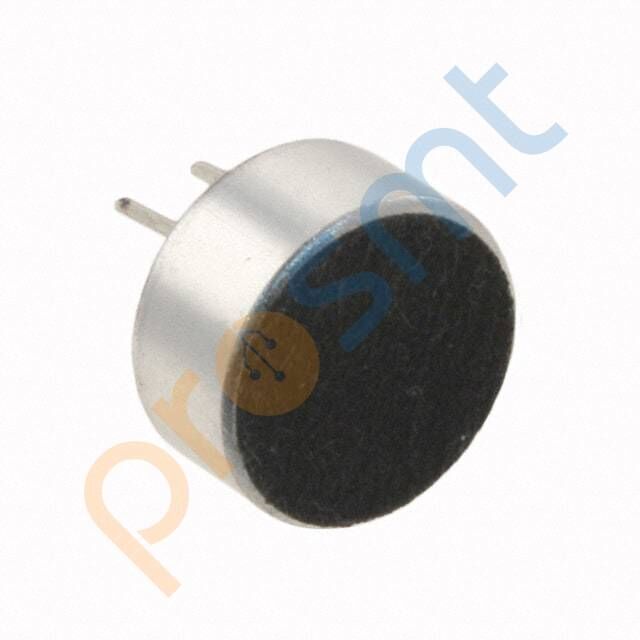

AOM-4544P-2-R MICROPHONE COND ANALOG OMNI - MIKROFON | MIC
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Mikrofon Çeşitleri
AOM-4544P-2-R MICROPHONE COND ANALOG OMNI
TDK InvenSense mikrofon INMP621ACEZ-R7. 45 Hz ~ 20.0 kHz, Rectangular, MEMS (Silicon), -46dB ±2dB @ 94dB SPL, Omnidirectional, Digital, PDM çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | AOM-4544P-2-R |
| Mfr | PUI Audio, Inc. |
| Description | MICROPHONE COND ANALOG OMNI |
| Series | AOM |
| Type | Electret Condenser |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 50 Hz ~ 16.0 kHz |
| Sensitivity | -44dB ±2dB |
| S/N Ratio | 60dB |
| Impedance | 2.2 kOhms |
| Voltage - Rated | 1.5 V |
| Voltage Range | 1.5 V ~ 10.0 V |
| Current - Supply | 500 µA |
| Port Location | Top |
| Ratings | - |
| Termination | PC Pins |
| Size / Dimension | 0.382" Dia (9.70mm) |
| Height (Max) | 0.185" (4.70mm) |
| Shape | Circular |
