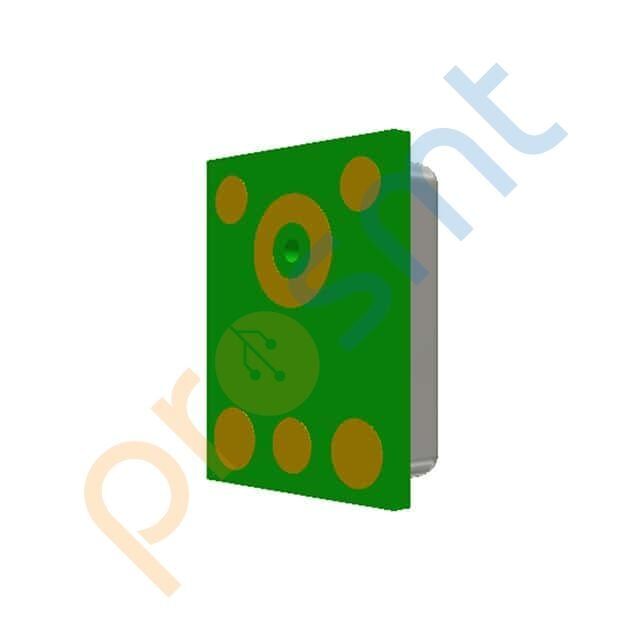

AMM-3738-B-R MICROPHONE MEMS ANALOG OMNI
TDK InvenSense mikrofon ICS-40619. 50 Hz ~ 20.0 kHz, Rectangular, MEMS (Silicon), -38db ±1dB, Omnidirectional, Analog çıkışlı.
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | AMM-3738-B-R |
| Mfr | PUI Audio, Inc. |
| Description | MICROPHONE MEMS ANALOG OMNI |
| Series | - |
| Type | MEMS (Silicon) |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 20 Hz ~ 20.0 kHz |
| Sensitivity | -38db ±1dB |
| S/N Ratio | 62dB |
| Impedance | 300 Ohms |
| Voltage - Rated | 2 V |
| Voltage Range | 1.5 V ~ 3.6 V |
| Current - Supply | 200 µA |
| Port Location | Bottom |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.148" L x 0.116" W (3.76mm x 2.95mm) |
| Height (Max) | 0.047" (1.20mm) |
| Shape | Rectangular |
