AI-5025-TF-LW100-R AUDIO INDICATOR 15 VDC 75 MA 117 - ALARM, BUZZER, SIREN
0,00 TL
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

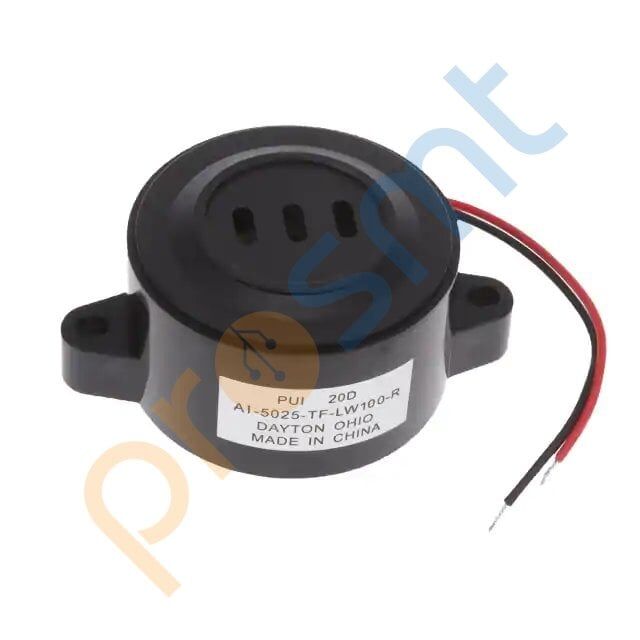

AI-5025-TF-LW100-R AUDIO INDICATOR 15 VDC 75 MA 117
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | AI-5025-TF-LW100-R |
| Mfr | PUI Audio, Inc. |
| Description | AUDIO INDICATOR 15 VDC 75 MA 117 |
| Series | AI |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 15 V |
| Voltage Range | 8 ~ 16V |
| Frequency | 2.5kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 117dB @ 15V, 10cm |
| Current - Supply | 75mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 1.142" (29.00mm) |
