AI-4329-P-SP28-R AUDIO PIEZO IND 4-28V PNL MNT - ALARM, BUZZER, SIREN
0,00 TL + KDV
Elektromekanik Komponent | Ses Ürünleri | Alarm, Buzzer ve Siren Çeşitleri

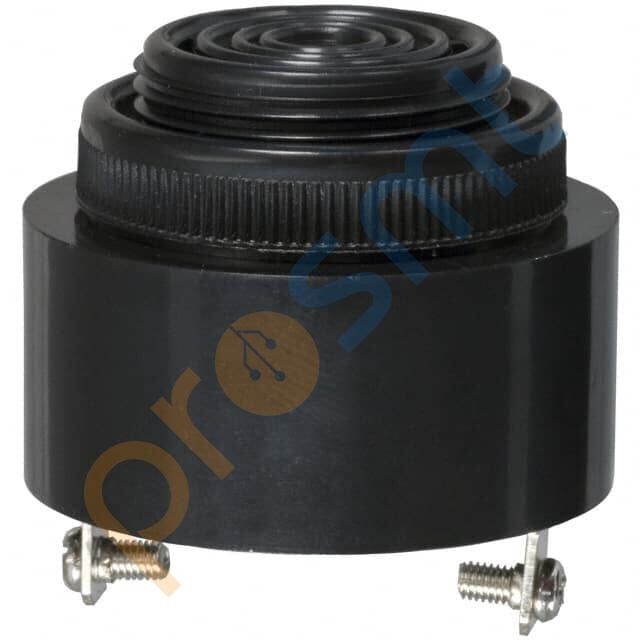

AI-4329-P-SP28-R AUDIO PIEZO IND 4-28V PNL MNT
| Özellik | Değer |
|---|---|
| Datasheet | PDF Datasheet indir |
| Mfr Part # | AI-4329-P-SP28-R |
| Mfr | PUI Audio, Inc. |
| Description | AUDIO PIEZO IND 4-28V PNL MNT |
| Series | AI |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 4 ~ 28V |
| Frequency | 2.9kHz |
| Technology | Piezo |
| Operating Mode | Pulse, Slow |
| Duration | 1.2 PPS |
| Sound Pressure Level (SPL) | 88dB @ 12V, 10cm |
| Current - Supply | 6mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Termination | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) |
| Size / Dimension | 1.693" Dia (43.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
